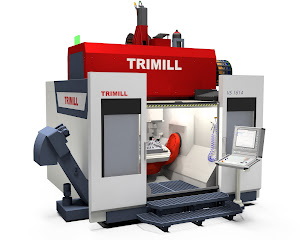

VS 1614 – BEŞİKLİ DÖNER TABLALI 5-EKSEN CNC
- Tilting rotary table with 1 200 mm diameter equipped with torque motors
- Load up to 2 500 kg
- Stainless steel internal covers of the machine
- Direct measuring in all axis
- Vibration sensing system
- Quick setup and commissioning of the machine – machine is transported fully assembled
PRODUCT SHEETS
TEKNİK ÖZELLİKLER
| Travels |
|
| X-ekseni [mm] |
1.600 |
| Y-axis [mm] |
1.400 |
| Z-axis [mm] |
800 |
| Optional spindle / head |
|
| Power (S1/100%) [kW] |
25 |
| Torque (S1/100%) [Nm] |
200 |
| Speed [rpm] |
12.000 |
| Tool adoption |
HSK – A 100 |
| Swivel axis [°] |
-130/+130 |
| Rotary axis [°] |
n x 360 |
| Clamping torque (swivel axis) [Nm] |
10.000 |
| Clamping torque (rotary axis) [Nm] |
6.500 |
| Optional spindle / head |
|
| Power (S1/100%) [kW] |
32 |
| Torque (S1/100%) [Nm] |
306 |
| Speed [rpm] |
14.000 |
| Tool holder |
HSK – A 100 |
| Optional spindle / head |
|
| Power (S1/100%) [kW] |
29 |
| Torque (S1/100%) [Nm] |
69 |
| Speed [rpm] |
24.000 |
| Tool holder |
HSK – A 63 |
| Clamping surface [mm] |
Ø 1.200 mm |
| Workpiece weight [kg] |
2.500 kg |
| Feed rate [mm/min] |
30.000 |
| Acceleration [m/s2] |
3 |
| Weight of machine [kg] |
32.000 |
TRIMILL VS 1614 Modelin Vidosunu izleyebilirsiniz.
TRIMILL VS 1614 Modeli Teklifini iletmemiz için lütfen aşağıdaki iletişim bilgilerinizi bizlere iletir misiniz… Teşekküler.
